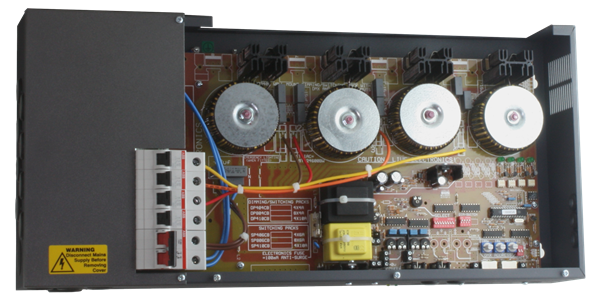

DP410CB Dimming and Switching Pack



Anytronics have combined the hard-fired triac dimming technology of their successful range of wall mount packs with the tried and tested digital control of the Contractor series to produce a new range of robust and flexible dimming and switching wall mount packs. The CB series of wall mount dimming packs feature type C circuit breaker protection and selection of either dimming or switching action on every channel. The dimmer circuitry is optimised to minimise RF interference and to work with all normal types of leading edge dimmable load circuits including inductive and electronic loads with no minimum loading constraints. This pack will control four channels with a maximum rating of 10A per channel.

Analogue and digital control input data is combined to control each channel with DIN input connectors for direct connection to analogue control desks, and XLR and RJ45 sockets for DMX In/Through connections from control desks or for direct connection to the wide range of Anytronics architectural control panels and scene setting products. An alternative RS232 input option using a 9 pin Cannon D connector is also available.

An enable/disable input, additive preheat control and full status indication complete a robust economic package which will prove useful in a wide range of entertainment, architectural and commercial applications.





DP410CB Dimming and Switching Pack Features



Construction
•Robust range of economical wall mounting dimming/switching packs.
•4 x 10A dimming/switching model.
•4 x 10A dedicated switching model (SP410CB).
•Rugged steel enclosure.
•Leading edge control utilizing 25 A power devices.

Indicators
•Power LED.
•Status indication on each channel.
•Data LED indication.

Inputs
•Comprehensive enable/disable input arrangements.
•Combined analogue and digital inputs.
•DMX 512 input.
•Choice of DMX or RS232 digital inputs.
•3 or 5 pin XLR and RJ45 DMX in/through connections.
•Optional Cannon D 9 way RS232 connector.

Operation
•Choice of dimming or switching channel by channel.
•No minimum load constraints.
•Analogue inputs via screw terminals and DIN sockets.
•Maximum level control on each analogue input.
•Auxiliary +22 V 50 mA supply on DIN socket to power remote desks etc.
•Auxiliary +22 V 50 mA supply on screw terminals to power remote equipment.
•Reference +10 V 10mA supply on DIN sockets and screw terminals..
•Auxiliary +5 V 50 mA supply on RJ45 for external controllers.
•Manual channel test facility.
•Additive preheat control.
•Electronic ballast setting for electronic loads.
•† Compatible with Anylight architectural control systems.
•Compatible with Anyscene and IR Anyscene DMX scene setting products.
•Compatible with AMD range of analogue and DMX architectural slider controls.

† All CB packs with 'K' prefix will require earth link 'L3' to be removed.
Anylight systems can be configured using all modified as above 'K' packs with mains powered Anylight interface models. See Anylight section for details.

All Anylight packs with 'AL' prefix are ready to use with all Anylight systems.
