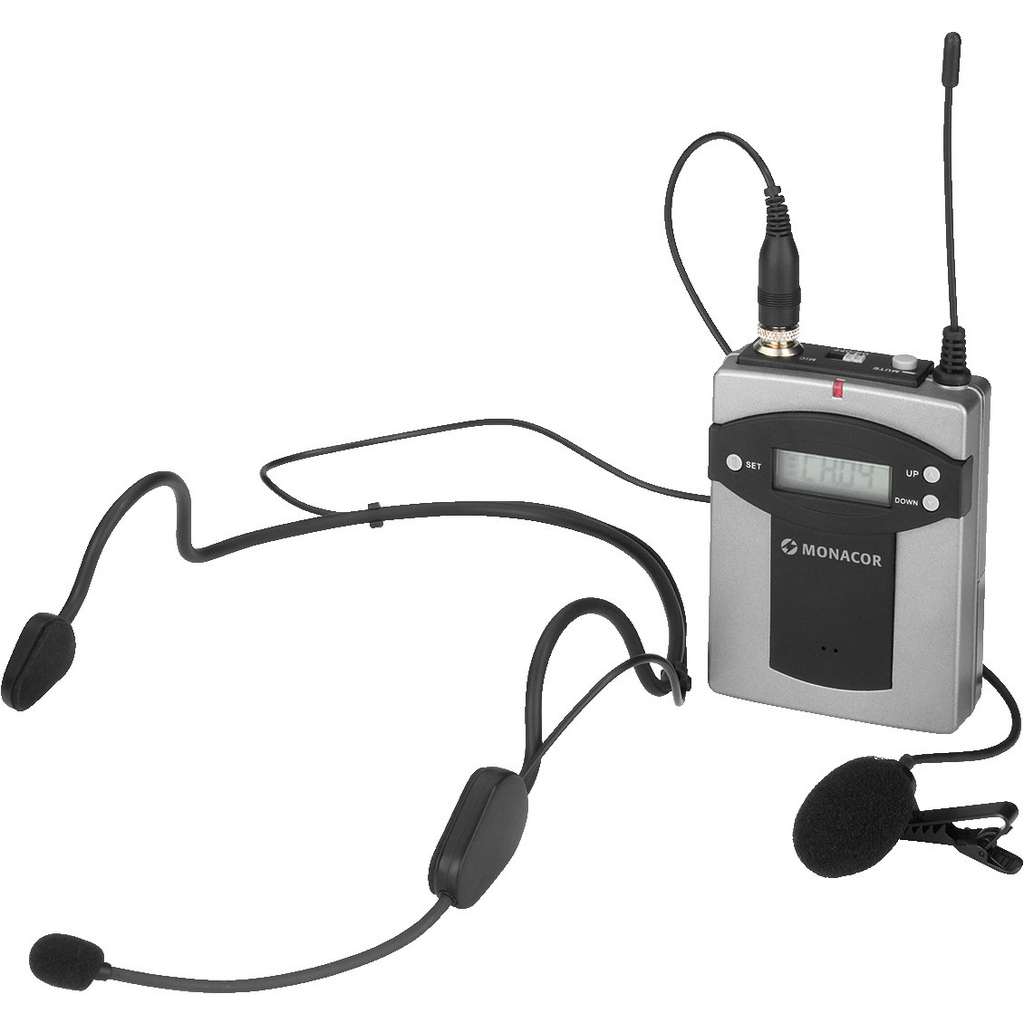

Multifrequency pocket transmitter,
with UHF PLL technology. Matching the portable amplifier systems of the TXA-800 series.

•1 headband microphone (omnidir. char.), 1 tie clip microphone (cardioid char.)
•16 selectable UHF frequencies (863.1-864.9MHz)
•Metal housing
•Microphone connection via 3-pole mini XLR jack
•Audio line input via 3.5mm stereo jack
•Sensitivity to be adjusted in 3 steps
•Mute function
•Backlit LCD for channel/frequency and battery status
•Transmitting power: 10mW (EIRP)
•Power supply via 2 x 1.5V battery AA size (not supplied)
•Belt clip

TEKNISKE DATA:
Carrier frequency 863.1-864.9MHz
Audio frequency range 70-16,000Hz
Frequency stability ±0.005%
Dimensions 65x95x30mm
Weight 110g
