300 W max aktiv højttaler med 15" basenhed. Indbygget kixer med 1 linie- og 2 mikrofonindgange.
Now available as the MK2 version: the successful 100 series of active speaker systems in plastic cabinets from IMG Stage Line:
an improved speaker technology, the latest amplifier concepts of high stability and an advanced sound tuning now make these models which are available at a more favourable price even more attractive.
Active DJ and power speaker system, 300WMAX, 175WRMS

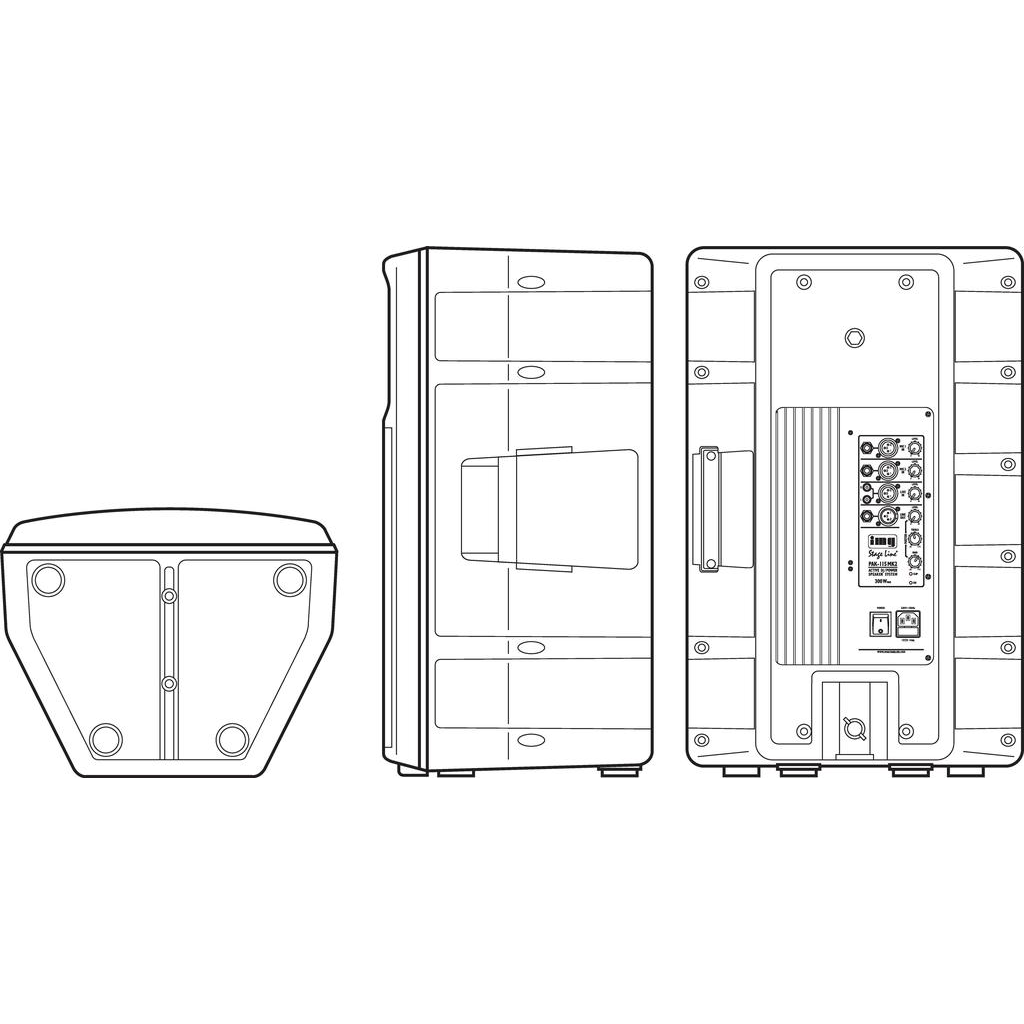

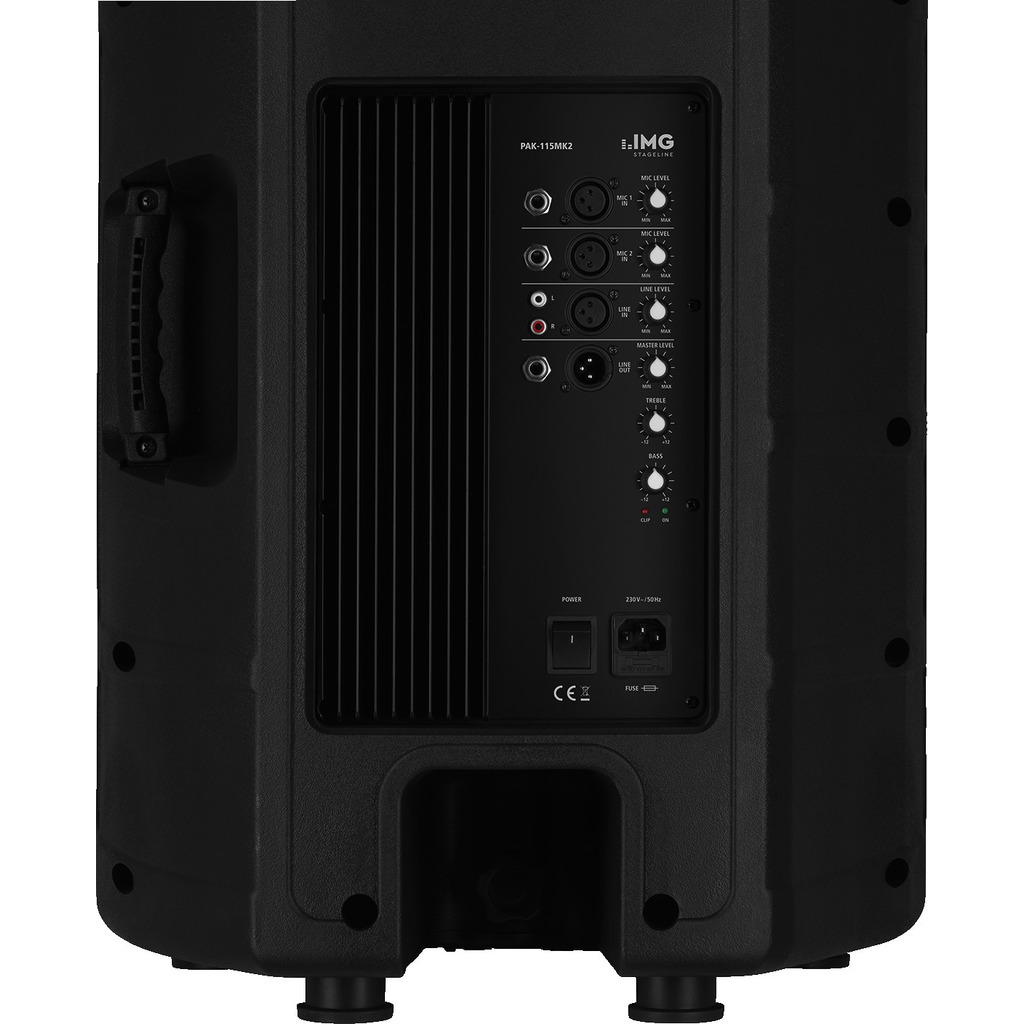

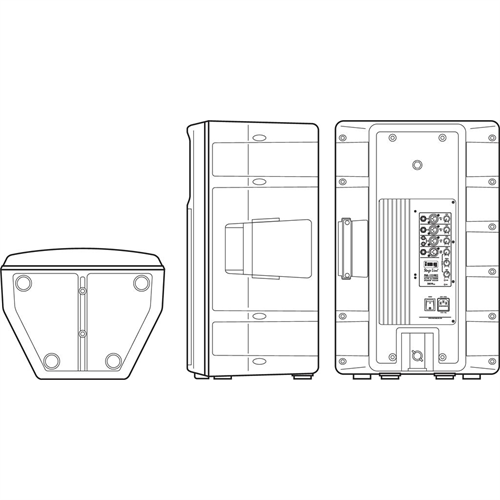

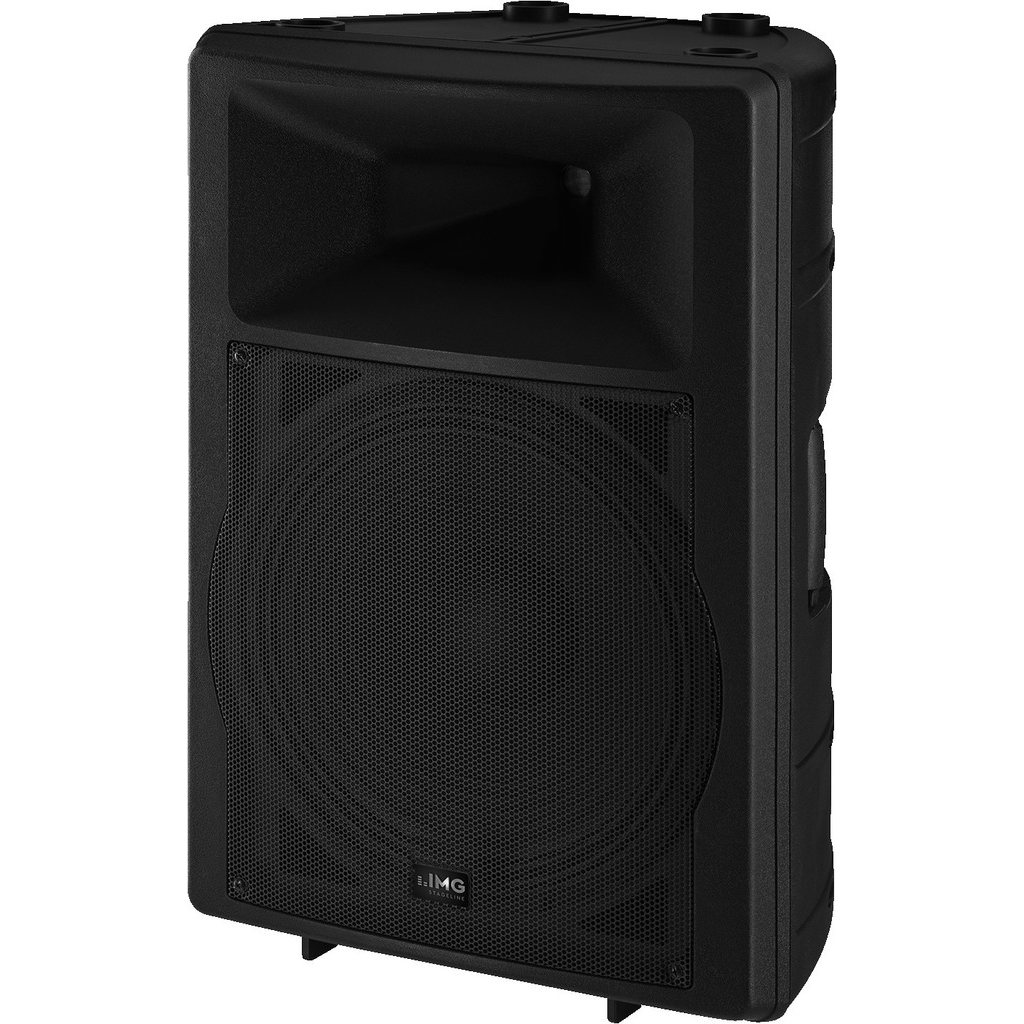

Stable plastic cabinet with handle and stand sleeve, 38cm (15") bass speaker of very high power capability and of high efficiency, with aluminium diecast basket and a dynamic 25mm (1", 44mm coil) horn tweeter. The amplifier features a mixing input section with 1 x line and 2 x mic (each with volume control), master volume and 2-band EQ. Beside the balanced mono XLR input, the line in via RCA is designed as the stereo master. An integrated limiter optimises the operational safety, a parallel line out completes the features of this speaker system which is often used for applications up to professional level. It provides a really well-balanced full range sound. Not least due to the high-quality speakers, the system is able to provide very high and increased volume levels compared with the previous model.
"This speaker system provides a great sound which is an advantage over many competitors in this price class who are unable to achieve this. The speaker system provides a clear round sound up to high volume levels. With the mini mixer aboard, it is even possible to quickly perform a very small gig."
Frequency range 45-20,000Hz
Amplifier power 175WRMS, 300WMAX
Inputs 1 x line (bal., 240mV,
stereo unbal., 950mV)
2 x mic (bal., 10mV)
SPL (1W/1m) 96dB
Max. rated SPL 119dB
Admiss. ambient temp. 0-40 °C
Power supply 230V˜/50Hz/370VA
Dimensions (WxHxD) 447x685x355mm
Connections XLR and RCA L/R (line)
2 x XLR (mic)
2 x 6.3mm jack (mic)
Other features par. line out
(XLR and 6.3mm jack, bal.)
2-band EQ ±12dB
