Subwoofer til CLUB-systemet. 4 stk. 8" basenheder sikrer en dyb og præcis basgengivelse.

The new CLUB system from IMG Stage Line: compact full range speaker, subwoofer and amplifier perfectly matched to each other and in combination provide a top-quality performance and considering the dimensions and price, they are simply fascinating! The units of the CLUB series from IMG Stage Line provide unparalleled possibilities, whether applied individually or together with other PA products of highest quality!

Professional subwoofer, 1,200WMAX, 600WRMS/8O or 2O or 2 x 600WMAX, 2 x 300WRMS/4O

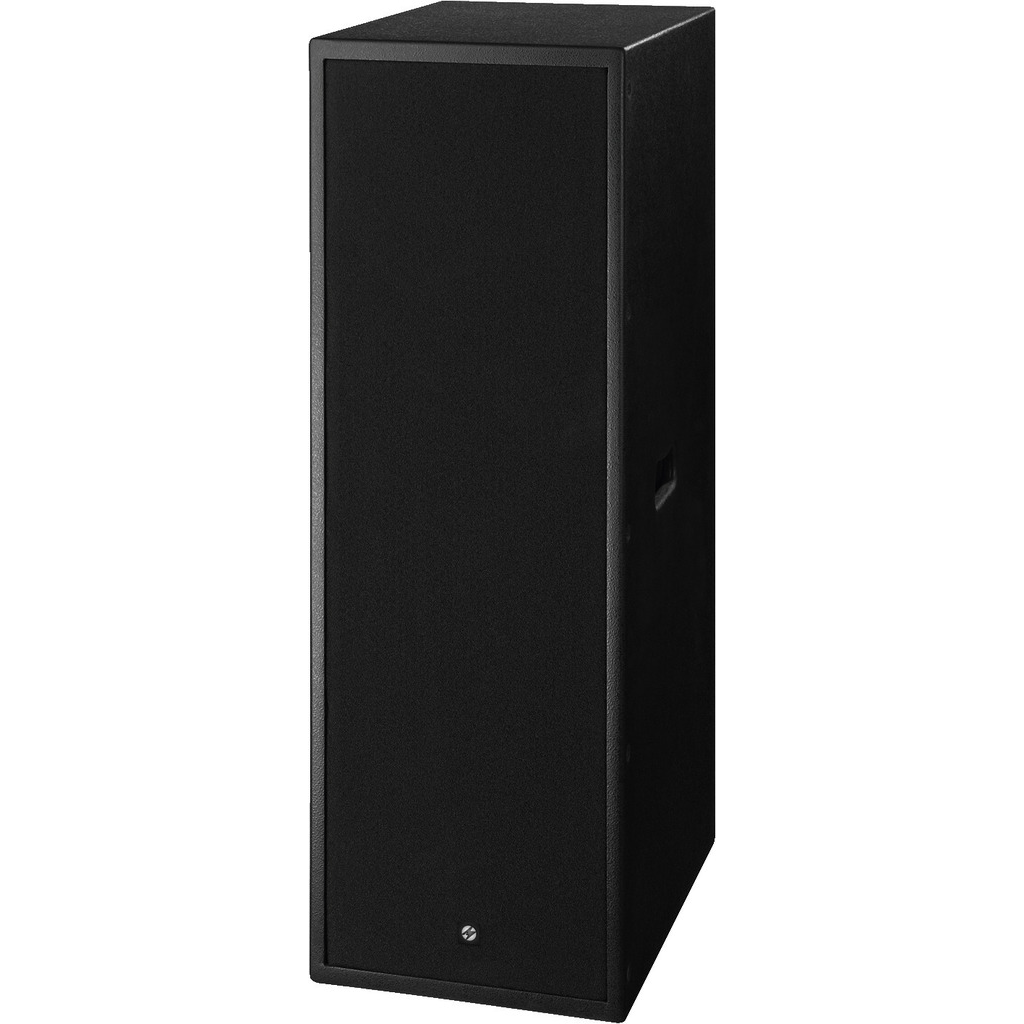

A subwoofer perfectly matched to the requirements of high-quality indoor PA applications. For events gastronomy and scene gastronomy, music pubs, small clubs, dancing schools, function rooms, bowling alleys, etc.: The CLUB-1SUB provides a precise bass reproduction. Despite the excellent bass qualities, the four 20cm (8") top-class woofers ensure an exceptionally slim and compact design of the CLUB-1SUB. With these compact dimensions, mobile application may also be an interesting option. At the same time, the multiple speaker configuration allows for a variable impedance concept (switchable between 1 x 8O and 2 x 4O, for parallel connection in the 2 x 4O position as 1 x 2O). Thus, multiple arrangements of the CLUB-1SUB can be perfectly matched e.g. to the STA-1503CLUB but also to many other amplifiers. The cabinet with black textured coating and acoustic foam padding of the stable grille is both robust and of an appealing design. An amplifier with integrated or external active crossover network is required for operation.

With its exceptionally high power capability and a perfect sound, one CLUB-1SUB is sufficient already to provide such an extended bass reproduction that even several top parts, e.g. like the CLUB-1TOP which is a perfect combination can ideally be complemented. In case of particularly high level requirements in the bass range, it is possible to connect up to three CLUB-1SUB units without any problems, e.g. to the mono sub channel of the STA-1503CLUB (each in the 8O mode, all in parallel). In 2 x 4O operation, the CLUB-1SUB is of course also an ideal partner for other multichannel amplifiers or every suitable 2-channel subwoofer amplifier.

SOUNDCHECK 10/2010
"A slimline column speaker with a well-balanced bass reproduction and impedance selection."

TEKNISKE DATA:
System bass-reflex subwoofer
Bass speaker 4 x 20cm (8")
Tweeter -
Music power 1,200WMAX
Power rating 600WRMS
Impedance 8O/2 x 4O/2O
Frequency range 45-250Hz
SPL (1W/1m) 96dB
Max. rated SPL 122dB
Admiss. ambient temp. 0-40 °C
Dimensions 300x880x440mm
Inputs 1 x or 2 x SPEAKER,
switchable

Outputs -
Weight 29.5kg
