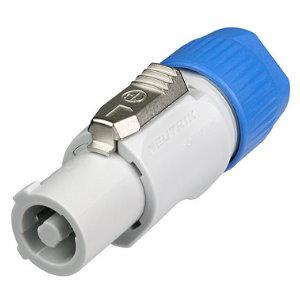

Cable connector, quick lock with securing lever, B-type for power-out, screw terminals.
The PowerCon® is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The PowerCon® is a connector without breaking capacity, i.e. the PowerCon® should not be connected or disconnected under load or live!
Features & Benefits
Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
Unique Neutrik chuck type strain relief
UL, cUL recognized components
VDE certified
SEV approved
Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Connector Type PowerCon
Gender female
Electrical
Contact resistance = 3 mO
Dielectric strength 4 kVdc
Insulation resistance > 0.1 GO (after damp heat test IEC 68-2-30)
Rated current per contact 20 A
Rated voltage 250 V
Mechanical
Cable O.D. 5 - 15 mm
Lifetime > 1000 mating cycles
Wire size 2,5 mm²
Wire size 14 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock
Material
Bushing Polyamide (PA 6 15% GR)
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Approvals UL,VDE,Electroswiss
Flammability UL 94 HB
Protection class IP 20 (mated)
Savety requirements EN/IEC 61984
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Mobile Cables
Coding A-type for power outlet (color coding grey)
