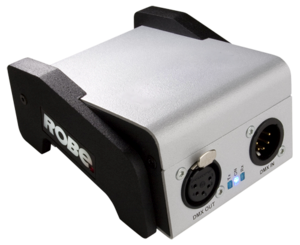

The Robe Universal Interface is a multi-functional tool box with 2 DMX ports and one USB port. This unit communicates with a PC or Laptop via USB. The Robe Universal Interface provides fixture software updates and with additional ROBE RDM-network software provides RDM (Remote Device Management) functionality. The DreamBox supports RDM - new control protocol featuring AutoPatch and Fixture Status Monitoring. The Robe Universal Interface can be used in combination with Robe Media Fusion software as DMX input from any DMX console

Details:
Suported operating systems
Windows CE, ME, 2000, XP, Vista, Server 2003, Linux
Electrical
No extra PSU needed
Galvanic isolation of 1kV between DMX Input and USB (DMX Output and USB)
Function
USB/DMX converter
Provides fixture software updates
Brings RDM communication protocol into DMX 512
Control systems
• RDM-network software allows:
- Fixture Status Monitoring
- Fixture Personality Setting
- AutoPatch
Connection
DMX data in/out: Locking 5-pin XLR
USB 2.0 (series B)
Mechanical Specification
Rugged aluminium housing
Height: 54 mm (2.1?)
Width: 86 mm (3.4?)
Depth: 108 mm (4.3?)
Weight: 0.3 kg (0.7 lbs)
